Komatsu 931

Strong and smart harvester

Komatsu 931

The Komatsu 931 is a strong harvester with optimal manoeuvrability. With its high production capacity and operator comfort it is built for truly demanding logging.

Features

Revolutionary 3-pump hydraulics

The 931's immense work capacity is much due to the brand new 3-pump hydraulics, split into dual circuits with separate pressure levels. The system is power-regulated against the diesel engine and offers a class-leading hydraulic capacity of 584 l/min. Unique pressure and flow optimisation enables you to work considerably faster without losing hydraulic power. You can operate several crane and head functions simultaneously with maximum hydraulic power, such as slewing the crane, feeding a log and manoeuvring the machine with optimally low fuel consumption.

Parallel crane

Fast and powerful parallel crane, easy to operate. Mechanical crane tip control. Rapid out, powerful in. Parallel curve. Agile in thinning. Contributes to lower fuel consumption.

Levelling function

The cab levelling function means that you are always seated levelly and don't need to stretch and strain to maintain good posture.

Specifications

931

Overview

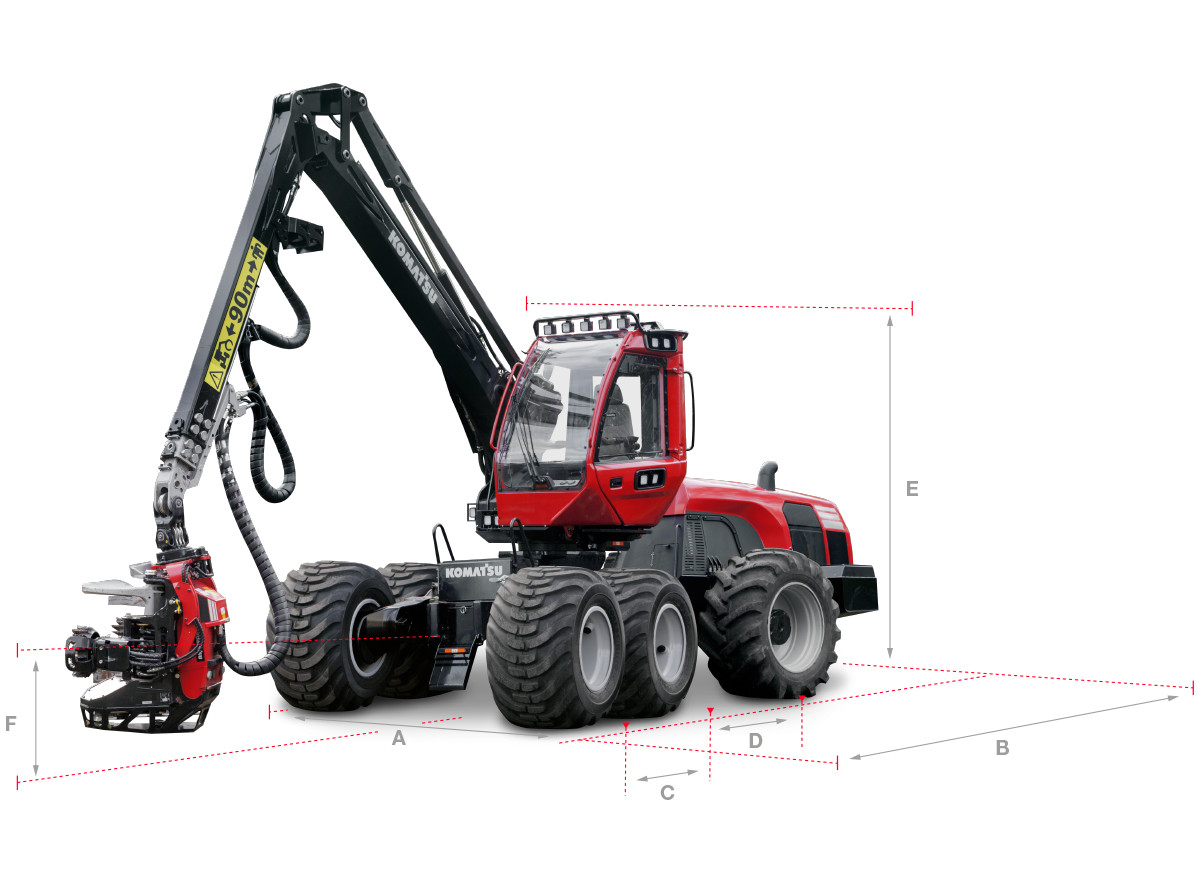

Komatsu 931 harvester dimensions
A. Width

With 600/55x26,5 tyres: 2 722 mm (8'11"). With 710/45x26,5 tyres: 2 952 mm (9'8")

B. Length, total

7 550 mm (24'9")

C. Length, front axle to middle joint

1 930 mm (6,4")

D. Length, middle joint to rear axle

1 800 mm (5'11")

E. Transport height

3 930 mm (12'11")

F. Ground clearance

665 mm (2'2")

Approximate weight

From 19 610 kg (43,233 lb)

Type, Europe and North America

74 AWF, 6-cylinder diesel engine with turbo and intercooler. EPA Tier 4 Final and EU Stage 4.

Type Brazil

74 CW3, 6-cylinder diesel engine with turbo and intercooler. MAR1 (Stage 3A)

Type, outside Europe, North America and Brazil

74 CW12, 6-cylinder diesel engine with turbo and intercooler. Stage 2

Stroke volume

7.4 l (1.95 gal)

Power

185 kW DIN at 1 900 rpm (Brazil: 193 kW DIN at 1 950 rpm)

Torque

1 100 Nm (738 ft-lb) at 1 500 rpm (Brazil: 1 000 Nm at 1 500 rpm)

Fuel tank

405 l (107 gal)

Model and reach

230H: 8.7 m (28'7"), 10 m (32'10"), 11 m (36'1")

Gross lifting torque

229 kNm (168,90 lbf-ft)

Gross slewing torque

47.5 kNm (35,034 lbf-ft)

Available heads

8,7 m (28'7"): S92, C93, C123, S132, C144, V132E, 370.2. 10 m (32'10"): S 92, C93, C123, S132, C144, V132E. 11 m (36'1"): S92, C93, C123

Flow

528 l/min (139 gal/min) at 1 600 rpm

System pressure

280 bar (4,061 psi)

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Driving speed

0-8/20 km/h (0-5/12.5 mph) (off-road/road)

Tractive force

168 kN (37,768 lbf)

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
