Komatsu 855-4
Powerful yet compact

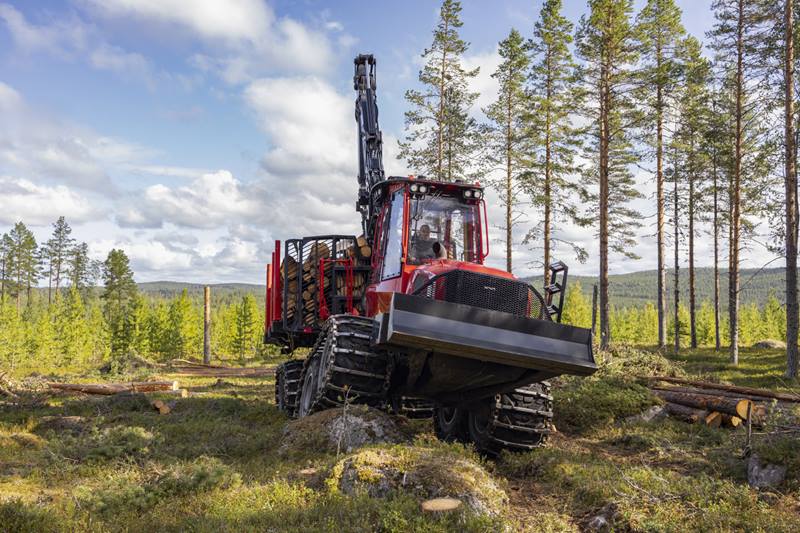

Komatsu 855-4
A versatile forwarder, designed for both thinning and final felling. Combining power with a compact design, it works productively in all conditions.
- Flexible with many customisation options, including two load space sizes, tiltable crane pillar and XT transmission for especially tough terrain
- 130F crane in 8 / 10m reach – possibility to choose the powerful 145F crane (option)
- 26.5“ wheels - choose between wheel width 600 / 710 / 800 mm
Weight
8WD: 18 570 kg
40,940 lb
Gross load
14 000 / 15 000 kg
Two load space options
Power
190 kW @ 1900 rpm
EU Stage V, Tier 4F
Max tractive effort
210 kN / 232 kN
47,210 / 52,158 lbf
Specifications
855-4
Overview
Dimensions
A. Width
With 600/55x26,5 tyres: 2 730 mm (8'11")
B. Length, total
130F: 10 200 mm (33'6") , 145F: 10 380 mm (34") (with shortest rear frame)
C. Length, front axle to middle joint
1 900 mm (6'3")
D. Length, middle joint to rear axle
130F: 3 300 mm (10'10") , 145F: 3 480 mm (11'5") (with shortest rear frame)
E Transport height with hoses and tyre compression
130F: 3 920 mm (12'10"), 130F with crane tilt: 3880 mm (12'9"), 145F: 3 930 mm (12'11")
F. Ground clearance, at steering joint
710 mm (2'4")
Note
Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.
Weight
Approximate weight
8WD: 18 570 kg (40,940 lb)
Engine
Type
AGCO Power, 75FSTN-D5, 6-cylinder diesel engine with turbo and intercooler
Stroke volume
7.5 l (1.98 gal)
Power
190 kW @ 1900 rpm (EU Stage V, Tier 4F)
Torque
1 130 Nm @ 1 500 rpm
Fuel Tank
210 l (55.4 gal)
Bunk area
Gross load
14 000 / 15 000 kg (30,865 / 33,069 lb)
Bunk area
4,4 - 5,9 m² (47.4 - 63.5 sq.ft)
Crane and grapple
Crane
Komatsu 130F, Komatsu 145F
Reach
130F: 8 m (26'3") / 10 m (32'10"), 145F: 8.5 m (27'11") / 10 m (32'10")
Gross lifting torque
130F: 127 kNm (93,670 lb-ft), 145F: 145 kNm (106,947 lb-ft)
Gross slewing torque
130F: 28.7 kNm (21,168 lb-ft), 145F: 38 kNm (28,027 lb-ft)
Rotator
G121/GT151
Grapple
We offer a wide selection of grapples, please contact your sales representative for more information
Hydraulic system
Max hydraulic flow
370 l/min (97 gal/min) at 1 950 rpm
Electrical system
Voltage
24 V
Battery capacity
2 x 185 Ah
Generator
200 A
Transmission
Driving Speed
0 - appr. 24.5 km/h (0 - appr. 15.2 mph)
Tractive Force
210 kN / 232 kN (47,210 / 52,158 lbf)
Notes
General information
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
