Komatsu 875

A forwarder in a class of its own

Komatsu 875

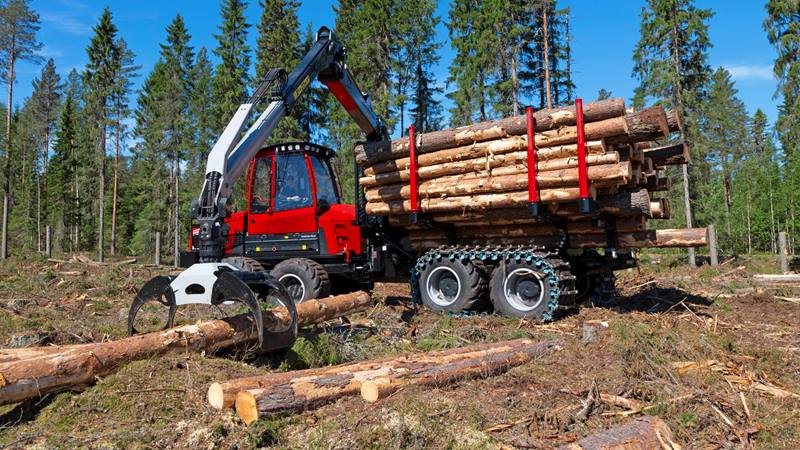

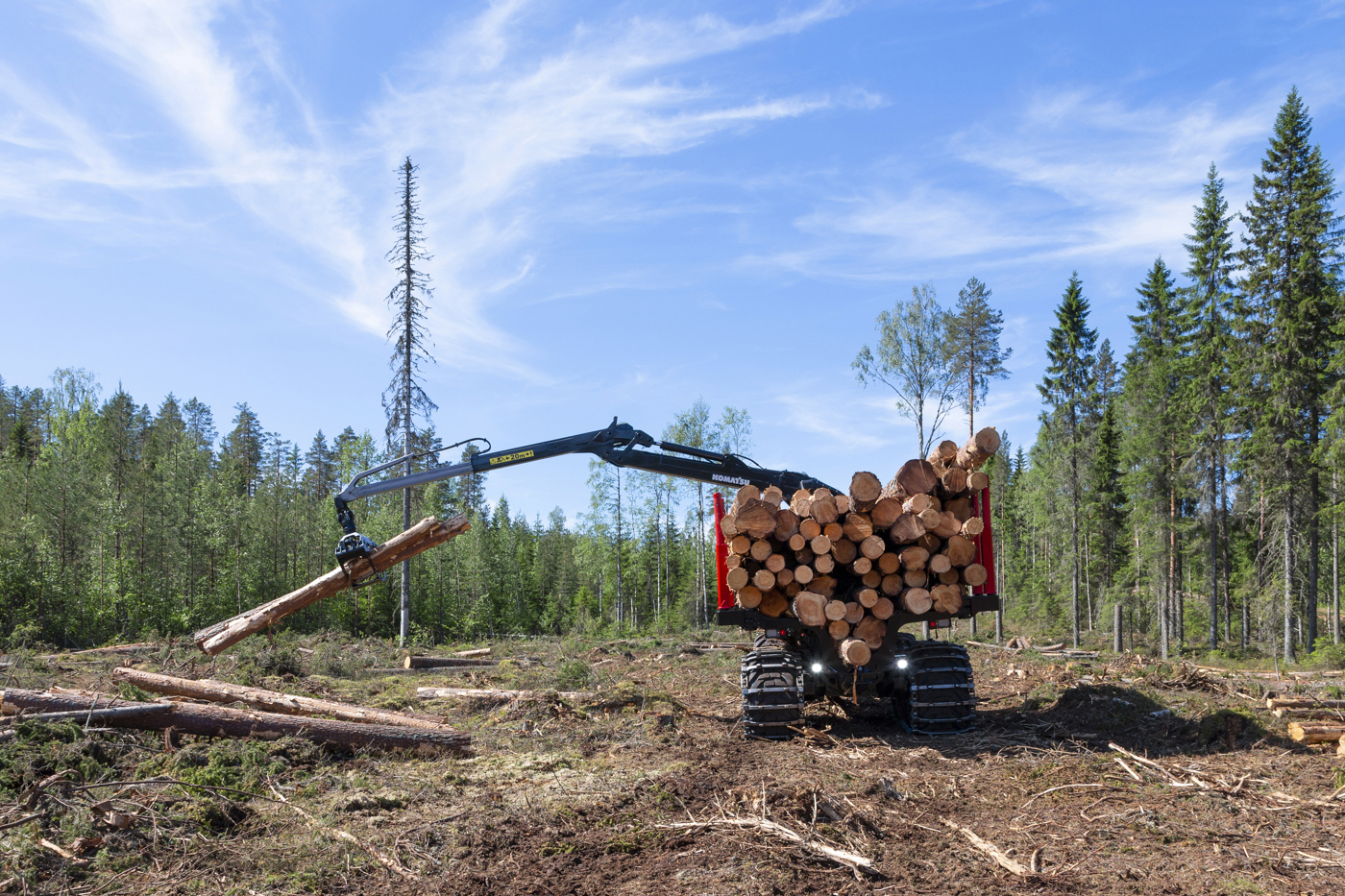

The Komatsu 875 is a profitable forwarder in a class of its own. Powerful for clear cutting and functional for thinning. It is strong and highly productive yet nimble enough to be an allround forwarder.

Download brochure

Gross load

16 000 kg (35,274 lb)

Power

190 kW DIN at 1850 rpm

Stage V, Tier 4F, Stage II (MAR-1: 185 kW DIN at 1900 rpm)

Torque

1130 Nm at 1500 rpm

Stage V, Tier 4F, Stage II (MAR-1: 1000 kW DIN at 1500 rpm)

Tractive force

214 kN 262 kN (59,000 lbf)

The advantages of our forwarders in 360°

Features

You have selected to inactivate embedded cookies. Activate them to use this function as intended.

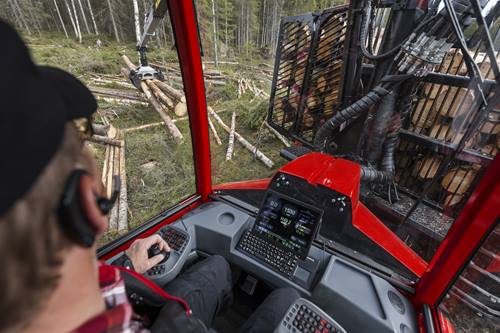

Comfort Ride

The next generation of Komatsu Comfort Ride is here

A forwarder operator spends many hours a day in the cab, making a pleasant and comfortable work environment extremely important. Komatsu Comfort Ride efficiently dampens jolts and vibrations, ensuring an ergonomic work environment. This in turn contributes to higher productivity and better profitability.

The new generation of Komatsu Comfort Ride comes with comfort-enhancing features like adjustable sideways firmness and automatic side levelling at standstill and at low speed. The elevated unloading mode now also works at low speed, to make it smoother to reposition the forwarder at the landing. Great news for all forwarder operators!

New - Smart Crane as option!

Now all our forwarders can be equipped with Smart Crane, with advantages such as simpler crane operation, less physical strain and higher productivity.

Click here for more information about Smart Crane

Smoother and faster transport

Komatsu Mini Steering Wheel means more space in the cab and a more comfortable driving experience. SpeedShift (Option) enables you to drive the machine at any speed between 0 and about 24 km/h without stopping to change gears – increasing productivity and saving fuel.

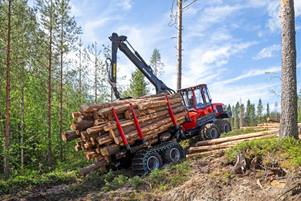

Maximised productivity

With a tractive force of 214 kN, the 875 has all the power required, and the unique interaction between engine, control system and transmission makes it exceptionally manoeuvrable in all situations. The Komatsu 875 provides its highest torque at low engine speeds and automatically adapts to changes in engine load due to terrain, obstacles, inclines and crane loads. The result is maximized productivity and benefit from every ounce of horsepower and every litre of diesel.

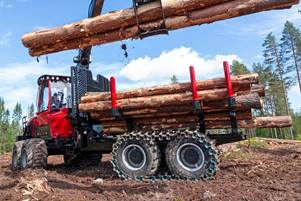

Flexible bunk with high load capacity

The Komatsu 875 has a large bunk characterised by its flexibility and many options. One is FlexGate, the gate that improves visibility and flexes out of the way if struck by the crane. This simplifies loading and minimises the risk of machine damage. Another is FlexBunk, which with its hydraulic height-adjustable stakes and option to widen the bunk provides a high load capacity. A third is LoadFlex which optimizes the load capacity and increases sorting flexibility

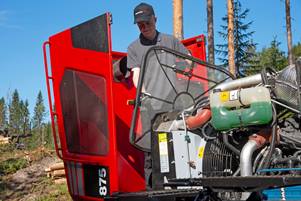

Service friendly

Servicing and maintenance are quickly and easily conducted. All daily servicing can be performed from ground level via easily accessible service hatches and the dipsticks are quickly and easily checked. Servicing is better facilitated by the electrically powered hood and strategically located filters.

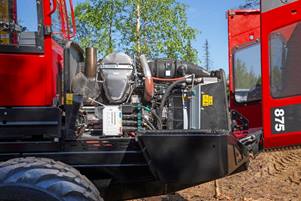

Powerful yet fuel effective engine

The engine’s performance corresponds closely with the stringent demands placed on a large, efficient forwarder, both in terms of high capacity and low environmental impact. Based on well-proven common rail technology with high fuel injection pressure and injection control that is both rapid and more precise, the Stage V Final engine delivers high engine power, high torque, lower emissions and low fuel consumption. Add to this the fact that the engine has optimised combustion chambers and the result is an engine with maximised combustion efficiency when power is most needed.

Specifications

875

Overview

Komatsu 875 forwarder dimensions
A. Width

With 710/45x26,5 tyres: 2 980 mm (9'9").

B. Length, total

10 360 mm (34'0") (with shortest rear frame)

C. Length, front axle to middle joint

1 900 mm (6'3")

D. Length, middle joint to rear axle

3 480 mm (11'5") (with shortest rear frame)

E. Transport height, with hoses and tire compression

130 F: 3920 mm (12'10"), 130F with crane tilt: 3 880 mm (12'9"), 145F: 3 930 mm (12'11")

F. Ground clearance, at steering joint

8WD: 710 mm (2'4")

Note

Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

6WD: 17 800 kg (39,242 lb), 8WD: 20 100 kg (44,213 lb)

Type

AGCO Power, 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4F, Stage II and MAR-1.

Stroke volume

7,4 l (1.95 gal)

Power

Stage V , Tier 4F and Stage II: 190 kW DIN at 1 850 rpm, MAR-1 185 kW at 1 900 rpm.

Torque

Stage V , Tier 4F and Stage II: 1 130 Nm at 1 500 rpm, MAR-1: 1 000 Nm at 1 500 rpm.

Fuel Tank

220 l (58 gal)

Gross load

16 000 kg (35,274 lb)

Bunk area

4,5 - 6,4 m² (48.4 - 68.9 sq.ft), depending on options and market

Crane

Komatsu 130F, Komatsu 145F

Reach

130F: 8 m (26'3") / 10 m (32'10"). 145F: 8,5 m (27'11") / 10 m (32'10")

Gross lifting torque

130F: 127 kNm (93,670 lb-ft) , 145F: 145 kNm (106,947 lb-ft)

Gross slewing torque

130F: 28.7 kNm (21,168 lb-ft), 145F: 38,0 kNm (28,027 lb-ft)

Rotator

G121/GT151

Grapple

Komatsu G28/G36

Max hydraulic flow

360 l/min (95.1 gal/min) at 2 000 rpm

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Driving Speed

0 - approx. 23 km/h (14,3 mph)

Tractive Force

214 kN

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
