Komatsu 901

Strong and nimble harvester

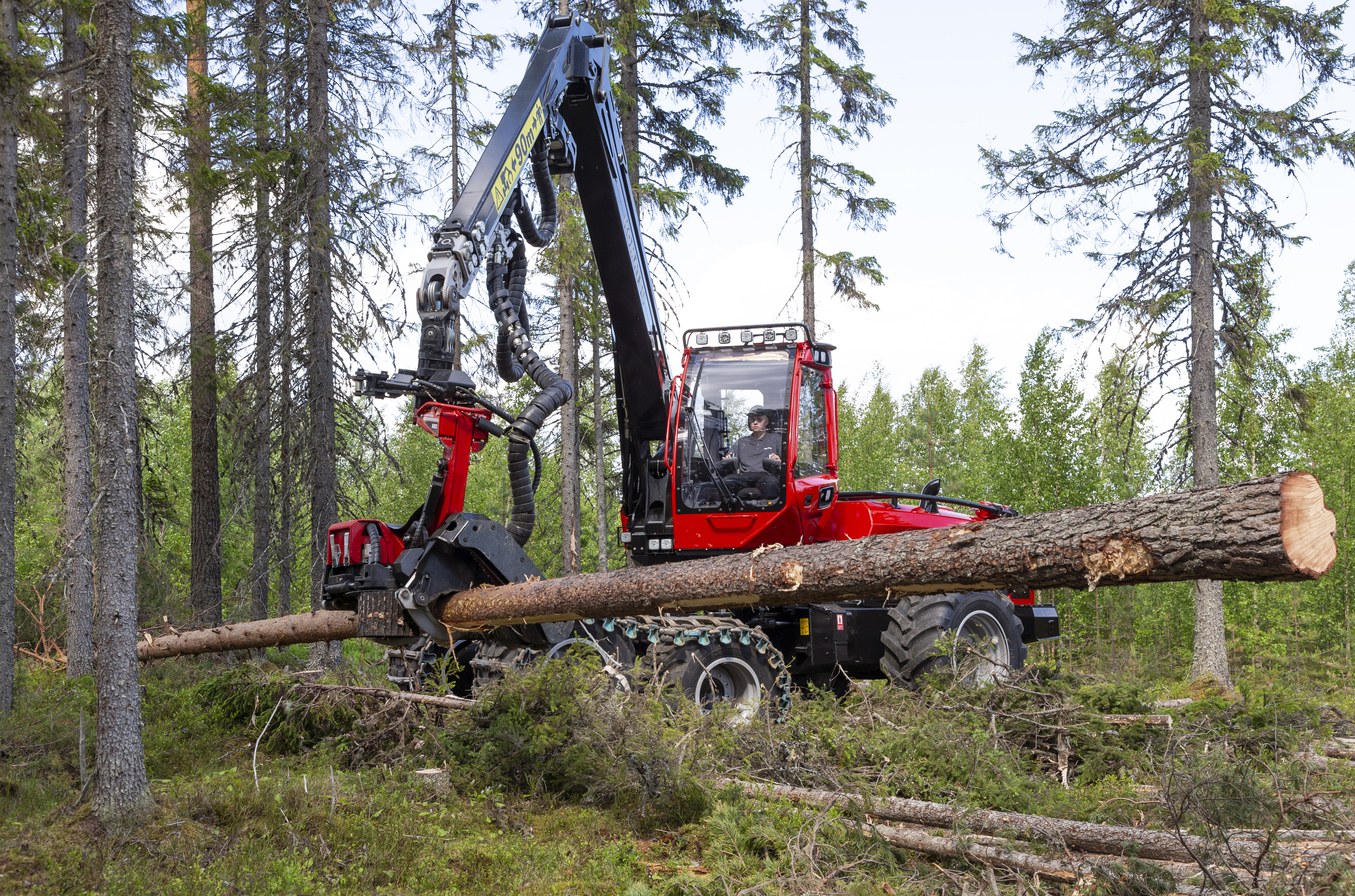

Komatsu 901

The Komatsu 901 harvester is both agile and powerful for its size. With its high productivity and operator comfort it is optimal for thinning. It has high work capacity and the possibility to operate several crane and head functions at the same time, keeping low fuel consumption.

Download brochure

Weight (appr.)

From 17 600 kg (38,800 lb)

Stroke volume

6.6 l (1.74 gal)

Power

Stage V and Tier 4F: 170 kW DIN at 1 900 rpm

Stage II: 165 kW DIN at 1 900 rpm

Tractive force

164 kN

The advantages of our harvesters in 360°

Features

You have selected to inactivate embedded cookies. Activate them to use this function as intended.

Crane operation at its easiest

For a harvester operator, an easily operated crane is important for ensuring a productive working day. With Komatsu Smart Crane, the crane – from the main boom all the way to the tip of the telescopic arm – is controlled with a single, smooth lever movement.

Thanks to the crane’s precision and responsiveness, the operator can easily steer the head where they want it, contributing to a more relaxed way of working. A relaxed operator can keep up a high and steady production during the day and still feel more refreshed at the end of the working day. Advantages that will be seen in both profitability and the operator’s well-being.

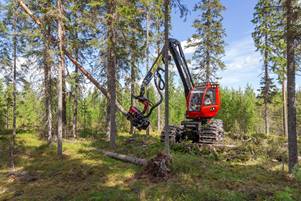

Revolutionary 3-pump hydraulics

The 901's immense work capacity is much due to the brand new 3-pump hydraulics, split into dual circuits with separate pressure levels. The system is power-regulated against the diesel engine and offers a class-leading hydraulic capacity of 400 l/min. Unique pressure and flow optimisation enables you to work considerably faster without losing hydraulic power. You can operate several crane and head functions simultaneously with maximum hydraulic power, such as slewing the crane, feeding a log and manoeuvring the machine with optimally low fuel consumption.

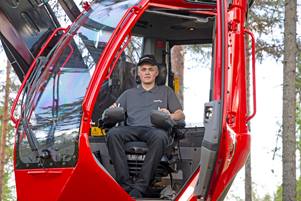

Large and spacious cab

New large and spacious cab in a new design. Built on our proven, ergonomic and reliable cab concept. Gives a more silent working environment, an exclusive interior with car type material, lots of dedicated storage space,and much more.

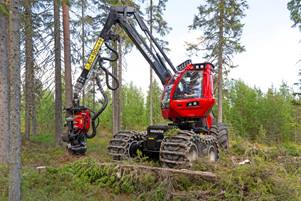

Crane placement and stability

The crane's placement together with the large work area provide the Komatsu 901 with unique conditions for high production capacity. The concept is proven and has a simple design, providing market-leading visibility and performance. The coupling between the cab's tilt cylinders and the stabiliser cylinders mounted on the rear axle provides world-class stability. To this we can add the cab's 360-degree rotational ability, which provides a larger work area and enables higher timber concentration and more effective forwarding.

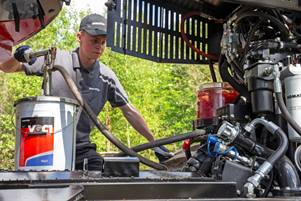

Service advantages

With easily accessible inspection and service points grouped together, an electronically operated engine hood and vertically mounted fuel and oil filters, the daily service is easily conducted.

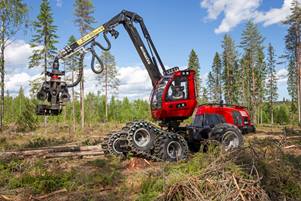

Improved off road manoeuvrability

Improved off-road manoeuvrability with higher ground clearance, greater tractive force and improved power steering.

Leave nothing to chance

Our MaxiFleet digital service is a comprehensive tool that simplifies your working day - regardless of whether your fleet is comprised of one or one hundred forest machines. MaxiFleet helps you to keep track of your machines, collaborate with colleagues and make informed decisions based on facts.

Specifications

901

Overview

Harvester Komatsu 901 dimensions
A. Width

With 600/45x24,5 tyres: 2 620 mm (8'7")

B. Length, total

7 235 mm (23'9")

C. Length, front axle to middle joint

1 850 mm (6'1")

D. Length, middle joint to rear axle

1 700 mm (5'7")

E. Transport height

3820 mm (12'6") to top of roof, straight cab. 3780 mm (12'5") backwards tilted cab with tilted light ramp. Both measurements with tyre compressions.

F. Ground clearance at steering joint

635 mm (2'1")

Note

Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

From 17 600 kg (38,801 lb)

Type

AGCO POWER. 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4 F and Stage II.

Stroke volume

6.6 l (1.74 gal)

Power

EU Stage V and Tier 4F: 170 kW DIN at 1 900 rpm. Stage II: 165 kW DIN at 1 900 rpm

Torque

EU Stage V, Tier 4F and Stage II: 950 Nm at 1 500 rpm

Fuel tank

370 l (97.74 gal)

Model and reach

200H : 10 m (32'10") or 11 m (36'1")

Gross lifting torque

198 kNm (14,604 lbf-ft)

Gross slewing torque

43 kNm (31,715 lbf-ft)

Available heads

S82, S92, C93

Flow

400 l/min (106 gal/min) at 1 600 rpm

System pressure

280 bar

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Driving speed

0 - approx. 24 km/h (14,9 mph)

Tractive force

164 kN

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
