Komatsu C164

The perfect match for large harvesters

Komatsu C164

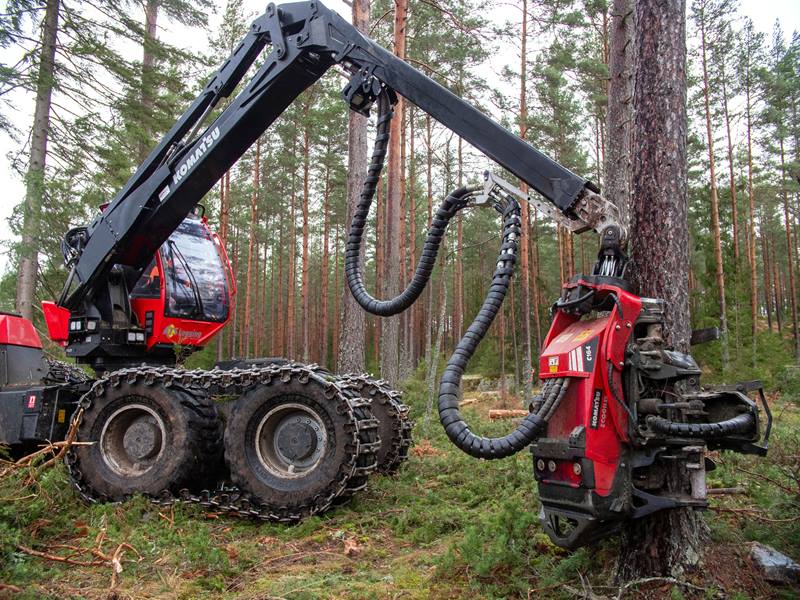

The Komatsu C164 is a long-awaited harvester head, tailor-made for handling large trees, big root flares and rough limbs in CTL. With its unmatched power paired with the effective and fuel saving 4WD feed system, the C164 is the perfect match for our largest harvester Komatsu 951.

Specifications

C164

Overview

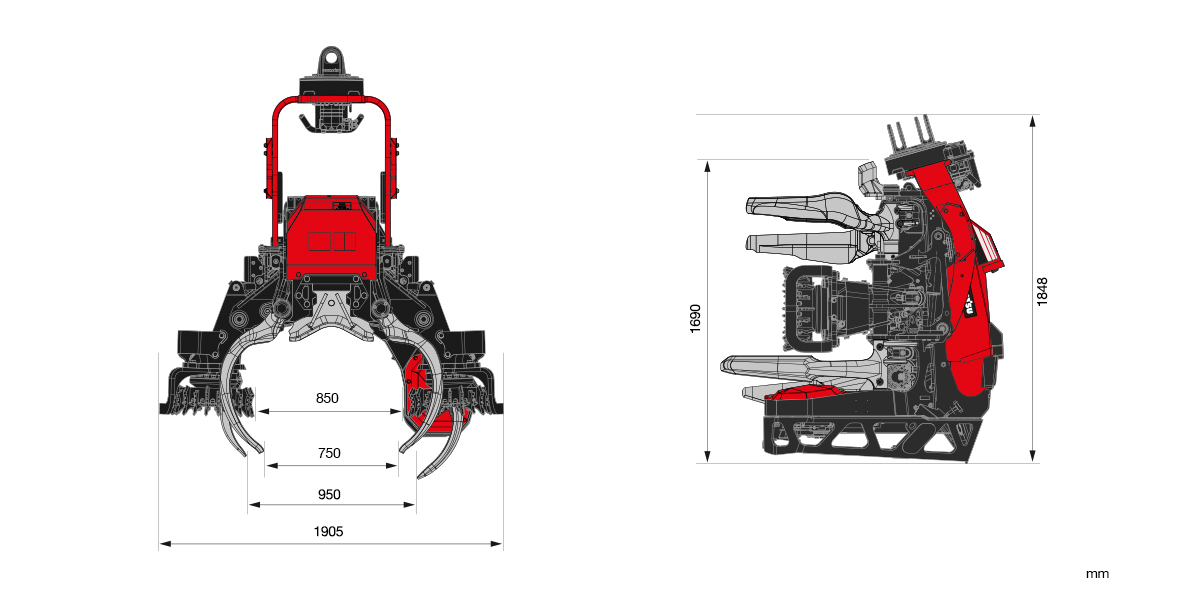

C164 drawing
Width, max

1 905 mm

Height incl. rotator

1 884 mm

Height to top knife

1 690 mm

Opening knives, upper

750 mm

Opening knives, lower

950 mm

Roller opening, max

850 mm

Weight

Dry weight, incl rotator, from 1 650 kg

Feed speed

0-5 m/s (0-16.4 ft/s)

Gross feed force

35,4 kN at 280 bar (motor dependent)

Feed wheel type

Finger feed rollers

Delimbing knives, number

5

Delimbing dia., tip-to-tip

620 mm (tip to tip)

Saw bar

90 cm

Saw motor

19 cm³/rev

Fell/Cut diam. theor. max

790 mm

Max hydraulic flow

380 l/min

Max hydraulic pressure

280 bar/28 MPa

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
