Komatsu S92

Productive and dependable harvester head

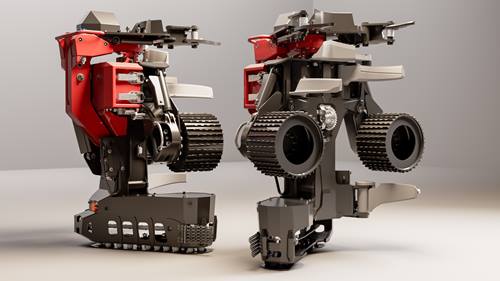

Komatsu S92

An allround harvesting head for maximum high productivity and dependability, even in the most difficult forests.

Features

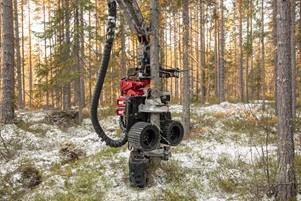

Dependable and productive even in tough conditions

The S92 is an allround head that is highly productive and dependable, even in difficult forests. The two-wheel feeding system permits the stems to turn in the head, even those that are forked or are very crooked.

With the Model Year 2024 upgrade, the head has many improvements. Among them are that the intelligent Constant Cut saw motor controller is now standard on the S92. Constant Cut ensures that the head maintains a constant and high chain speed without the risk of overspeeding. There is a new 82 cm saw bar option as well, alongside the standard 75 cm saw bar. This optional saw bar is ideal for final logging.

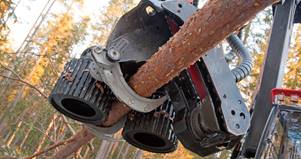

Efficient feeding with Flex Friction control

Our knife control system, Flex Friction Control, has sensors that ensure the stem is always in the correct position in the feed path. This results in low friction and efficient feeding, without sacrificing the delimbing results.

The feed system also has high flow feed motors, which leads to high capacity while minimising energy losses.

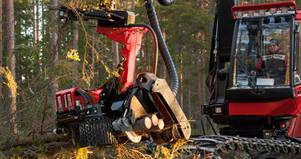

Multitree handling

The S92 can be equipped with an optional multitree equipment, which enables you to harvest several trees at a time. This makes the head more flexible and contributes to increased productivity.

The multi-tree handling function has a new, more durable design. The support plate has an improved design and the multi-tree handling hoses and rotator controller are more protected, extending their service life. The cylinders’ new, more protected placement reduces the risk of snow accumulation too. The new design results in a head that is a full 58 mm lower, making it more agile and simplifying work close to the machine.

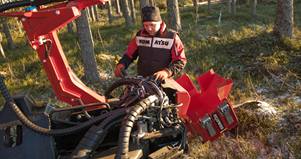

Service friendly

The head has a new position in which all lubrication points are accessible from one place, thereby simplifying service and daily maintenance.

Another improvement is that the colour marking tanks have been redesigned to provide easier access for filling. This modification also reduces the risk of snow accumulation.

Specifications

S92

Overview

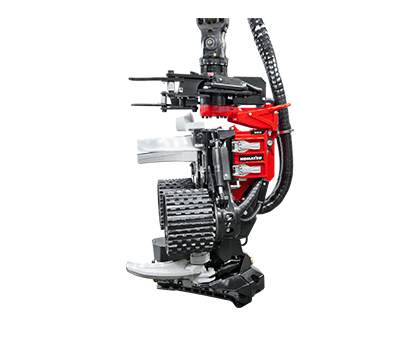

Komatsu S92 harvester head dimensions
Width, max

1382 mm (54.4")

Height incl. rotator

1873 mm (72.3")

Height to top knife

1474 mm (58")

Roller opening, max

530 mm (20.9")

Opening front knife to rear knife

573 mm (22.6")

Opening front knives

535 mm (21.1”)

Weight

Dry weight, incl rotator, from 1018 kg (2244 lb)

Feed speed

0-5,5 m/s (0-18 ft/s)

Gross feed force

1018 kg (2244 lb)

Feed wheel type

Steel

Delimbing knives, number

4

Delimbing dia., tip-to-tip

373 mm (14.7")

Saw bar

75 cm (29,5") / 82 cm (32.3")

Saw motor

19 cm3/rev (1.16 cu in/rev)

Fell/Cut diam. theor. max

615/715 mm (24.2/28.1")

Max hydraulic flow

240 l/min (63,4 gal/min)

Max hydraulic pressure

28 MPa (4,061 psi)

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
