Komatsu C144

Dependable and profitable harvester head

Komatsu C144

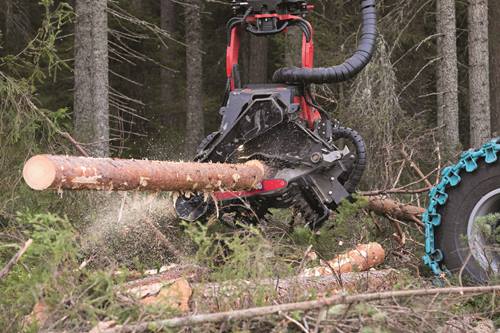

Komatsu C144 is designed for demanding and rough harvesting conditions. The head is equipped with Constant Cut that ensures optimal speed throughout the cutting cycle. Thereby increasing productivity and minimizing risk of splitting saw logs.

Features

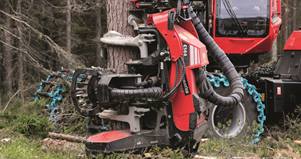

Never lets you down

The head that never lets you down – not even in the most demanding and rough harvesting environments. That's the Komatsu C144. This refusal to compromise is seen not the least in the 4WD feed. The system's extra roller in the feed line, which complements the body roller, is truly unique and produces significantly higher feed force.

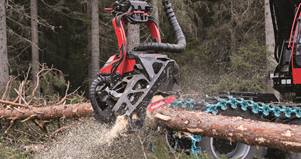

Upgraded cutting unit, Constant Cut

Constant Cut, our intelligent saw motor control, ensures that the head has a constant and efficient saw motor speed throughout the complete cutting cycle. This, in turn, ensures efficient cutting and limits problems with cutting cracks.

The Constant Cut cutting unit is upgraded for the Komatsu C144, featuring several improvements for increased reliability.

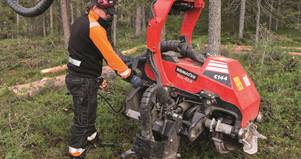

Service friendly

Safe and simple service with centralised lubrication points

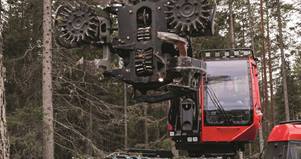

Head-mounted working lights

You can also opt for head-mounted working lights, which help increase productivity and reduce the risk of downtime.

Specifications

C144

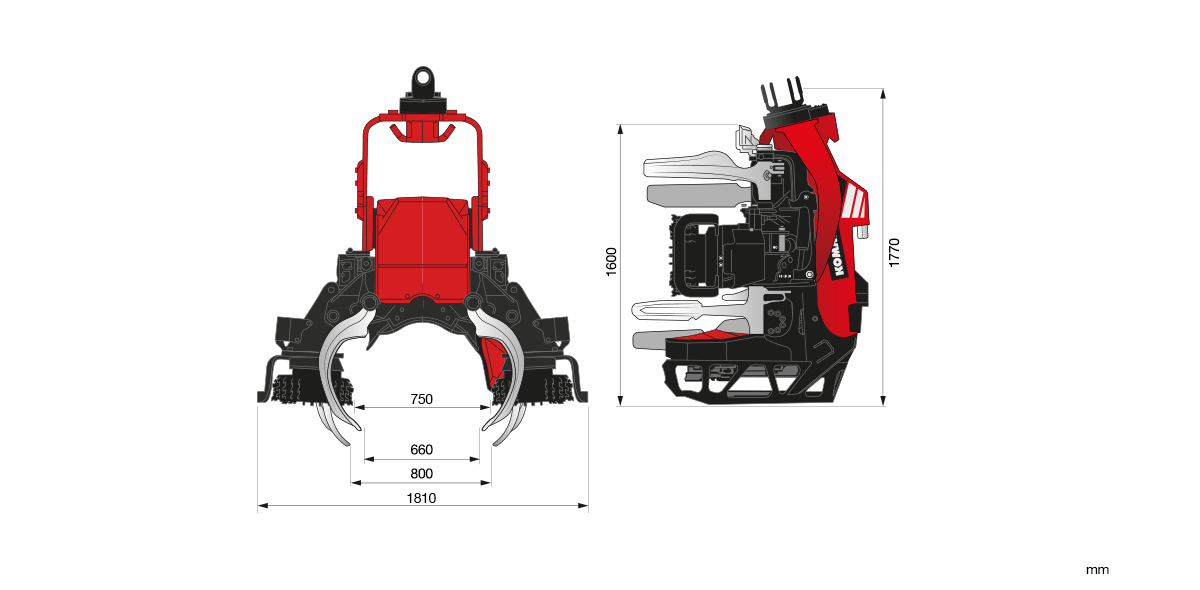

Overview

Komatsu C144
Width, max

1 823 mm (71.8”)

Height incl. rotator

1810 mm (71.2”)

Height to top knife

1 579 mm (62.1”)

Roller opening, max

750 mm (29.5”)

Opening front knives

650 mm (25.6")

Opening rear knives

800 mm (31.5")

Weight

Dry weight, incl rotator, from 1 407 kg (3,102 lb)

Feed speed

0-5 m/s (0-16.4 ft/s) / 6,5 m/s (21.3 ft/s)

Gross feed force

Feed roller motor dependent. 23,8 kN (5,350 lb) / 29,6 kN (6,654 lb)

Feed wheel type

Steel

Delimbing knives, number

5

Delimbing dia., tip-to-tip

530 mm (20.9”)

Saw bar

82,5 cm (32.5”) / 90 cm (35.4”)

Saw motor

19 cm3/rev (1.16 cu in/rev)

Fell/Cut diam. theor. max

750 mm (29.5")

Max hydraulic flow

Feed roller motor dependent. 320 l/min (84.5 gal/min), 330 l/min (87.2 gal/min)

Max hydraulic pressure

28 MPa (4,061 psi)

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
