Komatsu C202

Strong, durable and highly productive harvester head

Komatsu C202

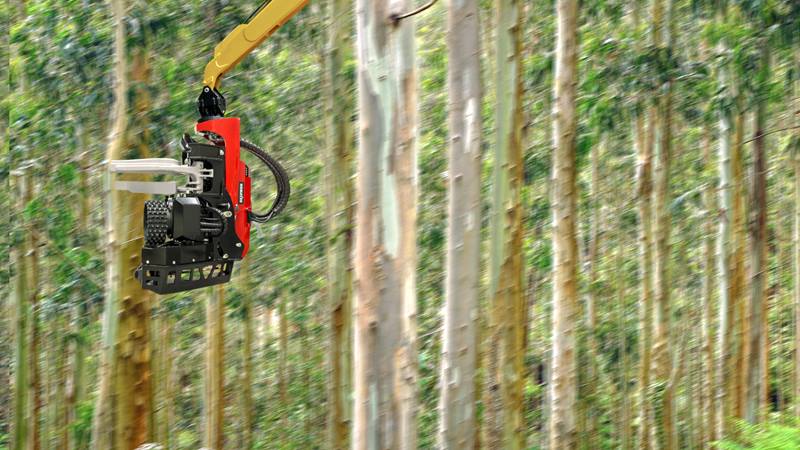

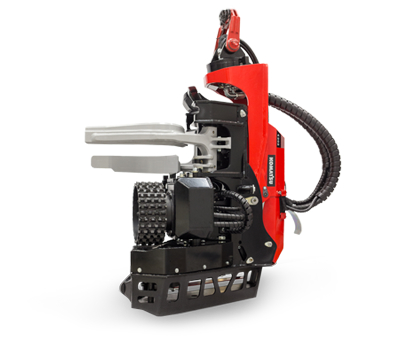

The Komatsu C202 is a high-quality, highly productive, and robust harvester head. The quality and the durability can be seen in everything from the sturdy frame and saw units to the stable attachments and reliable hydraulics. Everything to optimize reliability, service life and ease of service.

Specifications

C202

Overview

Komatsu C202 technical drawing
Width, max

1 645 mm (64.8”)

Height incl. rotator

1 995 mm (78.5”)

Height to top knife

1 700 mm (66.9”)

Opening knives

670 mm (26.4”)

Roller opening, max

650 mm (25.6”)

Weight

Dry weight, from 2 060 kg (4,542 lb)

Feed speed

Feed roller motor dependent: 0–4/4,5 m/s (0-13,1/14,8 ft/s)

Gross feed force

Feed roller motor dependent: 36.3 kN (8,161 lbf) / 39,6 kN (8,902 lbf)

Feed wheel type

Steel

Delimbing knives, number

3

Delimbing dia., tip-to-tip

560 mm (22.0”)

Saw bar

84 cm (33”)

Saw motor

30 cm3/rev (1.83 cu in/rev)

Fell/Cut diam. theor. max

700 mm (27.6”)

Max hydraulic flow

330 l/min (87.2 gal/min)

Max hydraulic pressure

30 MPa (4,351psi)

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
