Komatsu C202E

The strong, durable and highly productive harvester head

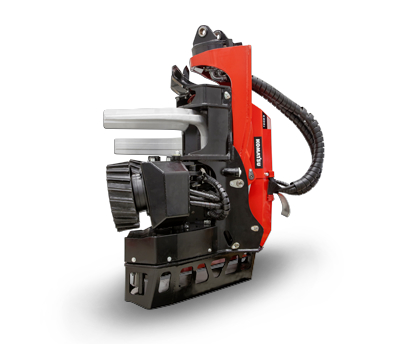

Komatsu C202E

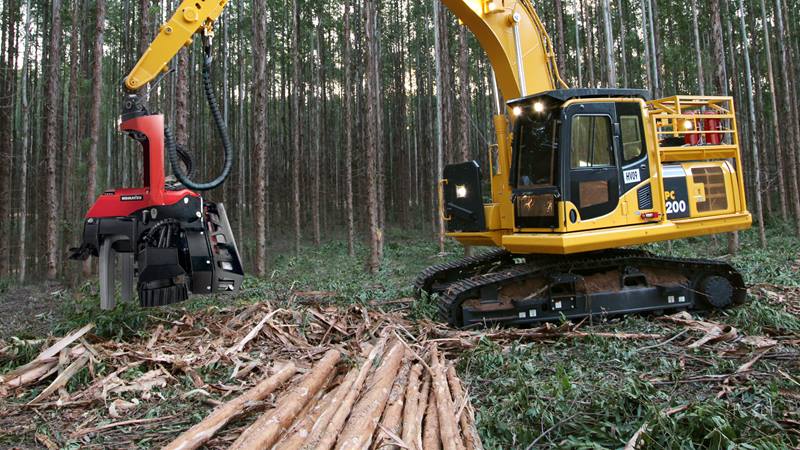

The Komatsu C202E is a high quality, highly productive and robust head. It is also something as unusual as a large head with a debarking function, ideal for hardwood. It has a powerful frame and saw unit as well as sturdy brackets and dependable hydraulics. All to opimise reliability, service life and service friendliness.

Specifications

C202E

Overview

Komatsu C202E harvester head dimensions
Width, max

1 575 mm (62”)

Height incl. rotator

1 995 mm (78.5”)

Height to top knife

1 745 mm (68.7”)

Opening knives

675 mm (26.6”)

Roller opening, max

650 mm (25.6”)

Weight

Dry weight, from 2 010 kg (4,431 lb)

Feed speed

Feed roller motor depending. Debarking: 0–6 m/s (0–20 ft/s) / Non-debarking: 0-4,5 m/s (0-15 ft/s)

Gross feed force

Feed roller motor depending. Debarking: 26.6 kN (5,980 lbf). Non-debarking: 35.5 kN (7,981 lbf)

Feed wheel type

Steel

Delimbing knives, number

4

Delimbing dia., tip-to-tip

425 mm (16.5”)

Saw bar

88 cm (34.7”)

Saw motor

30 cm3/rev (1.83 cu in/rev)

Fell/Cut diam. theor. max

650 mm (25.6”)

Max hydraulic flow

320 l/min (84.5 gal/min)

Max hydraulic pressure

30 MPa (4,351psi)

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
